SRC5000UXI

SRC5000UXI
₹ 62,001.00 In Stock!
62001.0000

Enter Pincode for Offers/With Out-In Exchange:

 Warranty in Month's : 24 Detailed Warranty: Capacity: 0.0 AH
*F = Free of Cost Replacement *P = New Battery at Pro-rata Warranty (Discounts will be applicable upon the MRP of New Battery Purchase.For More details, Pls refer Warranty Card
Share:

Capacity

0.0 Watts

Warranty

24 Months

Brand

APC

Src5000uxi


APC SRC5000UXI

Warranty 24 months

SRC With out Batteries

192VDC(16 Battery System)



5 KVA Online Inverter 3500W

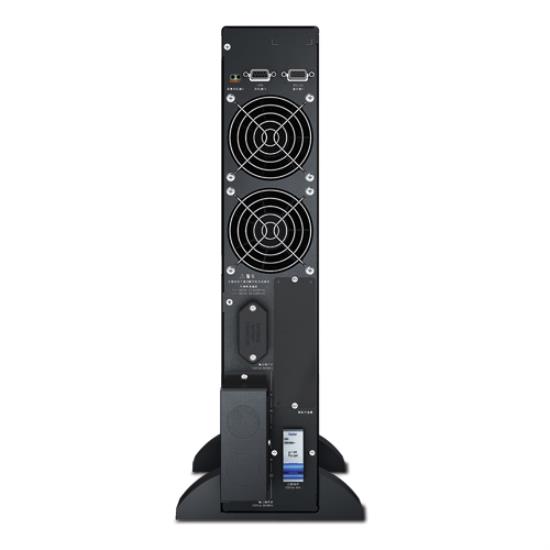

PC Smart-UPS RC 5000VA 230V for India - No Batteries

APC Smart-UPS On-Line,3500 Watts /5000 VA,Input 230V /Output 230V, Interface Port DB-9 RS-232, SmartSlot, Extended runtime model, Rack Height 2 U

Includes: CD with software, Rack Mounting brackets, Smart UPS signalling RS-232 cable, User Manual

Output

Output Power Capacity
3500 Watts / 5000 VA
Max Configurable Power
3500 Watts / 5000 VA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
90.0%
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages
220, 240
Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform Type
Sine wave
Output Connections
(1) Hard Wire 3-wire (H N + G)
Bypass
Built-in Bypass

Input

Nominal Input Voltage
230V
Input Frequency
40 - 70 Hz (auto sensing)
Input Connections
Hard Wire 3 wire (1PH+N+G)
Input voltage range for main operations
160 - 280V
Input voltage adjustable range for mains operation
100 - 280V
Other Input Voltages
220, 240
Maximum Input Current
37A
Input Breaker Capacity
40.0  A
Input Total Harmonic Distortion
Less than 9% for full load

Batteries & Runtime

Battery Type
No internal battery - uses external battery system
Available Battery Module Slots
1
Replacement battery cartridge note
Unit ships without batteries
Runtime Graph
Curve Part Number(s)
A SRC5000UXI
+ (1)SRC192XLBP
B SRC5000UXI
+ (2)SRC192XLBP
C SRC5000UXI
+ (3)SRC192XLBP
D SRC5000UXI
+ (4)SRC192XLBP
E SRC5000UXI
+ (5)SRC192XLBP
Hover over the line on the graph above to view the runtime at any desired load
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Communications & Management

Interface Port(s)
DB-9 RS-232, SmartSlot
Available SmartSlot™ Interface Quantity
1
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Optional

Surge Protection and Filtering

Surge energy rating
420 Joules
Filtering
--

Physical

Maximum Height
440.00 mm
Maximum Width
89.00 mm
Maximum Depth
660.00 mm
Rack Height
2U
Net Weight
15.00 KG
Shipping Weight
20.00 KG
Shipping Height
220.00 mm
Shipping Width
600.00 mm
Shipping Depth
900.00 mm
Color
Black
Units per Pallet
12.00

Environmental

Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-20 - 50 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
55.00 dBA
Online Thermal Dissipation
652.00 BTU/hr

Conformance

Regulatory Approvals
EN 60950, EN/IEC 62040-2
Standard Warranty
2 years repair or replace, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

RoHS
Compliant



Output

Output Power Capacity
3500 Watts / 5000 VA
Max Configurable Power
3500 Watts / 5000 VA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
90.0%
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages
220, 240
Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform Type
Sine wave
Output Connections
(1) Hard Wire 3-wire (H N + G)
Bypass
Built-in Bypass

Input

Nominal Input Voltage
230V
Input Frequency
40 - 70 Hz (auto sensing)
Input Connections
Hard Wire 3 wire (1PH+N+G)
Input voltage range for main operations
160 - 280V
Input voltage adjustable range for mains operation
100 - 280V
Other Input Voltages
220, 240
Maximum Input Current
37A
Input Breaker Capacity
40.0  A
Input Total Harmonic Distortion
Less than 9% for full load

Batteries & Runtime

Battery Type
No internal battery - uses external battery system
Available Battery Module Slots
1
Replacement battery cartridge note
Unit ships without batteries
Runtime Graph
Curve Part Number(s)
A SRC5000UXI
+ (1)SRC192XLBP
B SRC5000UXI
+ (2)SRC192XLBP
C SRC5000UXI
+ (3)SRC192XLBP
D SRC5000UXI
+ (4)SRC192XLBP
E SRC5000UXI
+ (5)SRC192XLBP
Hover over the line on the graph above to view the runtime at any desired load
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Communications & Management

Interface Port(s)
DB-9 RS-232, SmartSlot
Available SmartSlot™ Interface Quantity
1
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Optional

Surge Protection and Filtering

Surge energy rating
420 Joules
Filtering
--

Physical

Maximum Height
440.00 mm
Maximum Width
89.00 mm
Maximum Depth
660.00 mm
Rack Height
2U
Net Weight
15.00 KG
Shipping Weight
20.00 KG
Shipping Height
220.00 mm
Shipping Width
600.00 mm
Shipping Depth
900.00 mm
Color
Black
Units per Pallet
12.00

Environmental

Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-20 - 50 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
55.00 dBA
Online Thermal Dissipation
652.00 BTU/hr

Conformance

Regulatory Approvals
EN 60950, EN/IEC 62040-2
Standard Warranty
2 years repair or replace, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

RoHS
Compliant
