EXIDE SOLAR CHARGE CONTROLLER 12V 10 AMPS

EXIDE SOLAR CHARGE CONTROLLER 12V 10 AMPS
₹ 999.00 In Stock!
999.0000 Old Price 1499.00

Enter Pincode for Offers/With Out-In Exchange:

 Warranty in Month's : 12 Detailed Warranty: Capacity: 0.0 AH
*F = Free of Cost Replacement *P = New Battery at Pro-rata Warranty (Discounts will be applicable upon the MRP of New Battery Purchase.For More details, Pls refer Warranty Card
Share:

Capacity

0.0 Watts

Warranty

12 Months

Brand

Exide

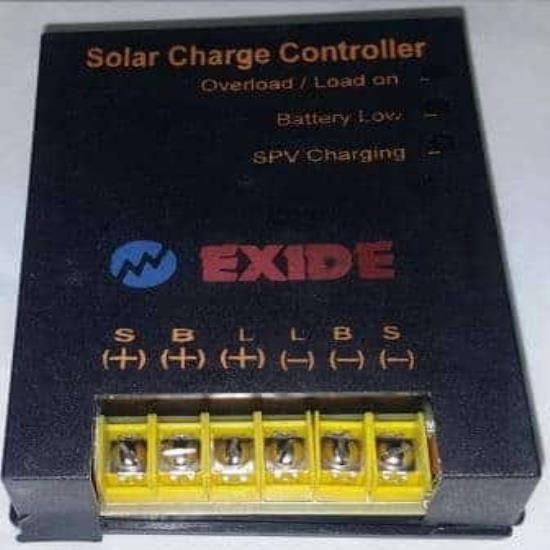

Exide Solar Charge Controller 12V 10 Amps


  • Max 12V 150Watts Panel Only
  • From Exide-Chloride
  • PWM

Solar PWM Micro Controller based Charge Controller

Protection:

Deep Discharge

The Load is automatically cut off from Battery one the Battery voltage reached LVD. This is done to protect the battery from deep discharge.

Overload protection

The Charge controller is having electronic over load protection, once the charge controller load is on the thresh hold of maximum limit top LED glows and signal to reduce load or else this protection automatically disconnect the load after a certain time delay.

Short circuit protection

If the Load terminal is short circuited the electronic protection automatically disconnect the load instantly.

Battery reverse Polarity

The electronic circuit is having protection for reverse polarity. (In this condition the voltage at load terminal will also be reverse and may be harm full to load)

SPV Module reverse connection

The electronic protection will prevent any current from SPV Modules & respective LED indication will not glow.

Dimension

130x125x40 (all in mm)

Protection Class

IP20

Weight

200 gm (Max)

Specified Temperature Range

-20 to +50 ⁰C

Input Charge Current
(solar Charge current)

10 Amp maximum depending on model (Tolerance: ±5%)

Output Current Rating

10 Amp Maximum depending on model (Tolerance: ±5%)

Nominal Battery Voltage

12 / 24VDC Automatic recognition

Nominal PV Voltage

12 / 24VDC Automatic recognition

PV Open Circuit Voltage

44VDC Maximum

Standby Power Consumption (self consumption)

Less than 5mA

Charge Algorithm

3 stage charge PWM

Boost Voltage

14.5/29 (±2%) at 25⁰C

Equalizing Voltage

14.8/29.6 (±2%) at 25⁰C

Float Voltage

13.7/27.4 (±2%) at 25⁰C

LVD

11.5/23 (±2%) at 25⁰C

LVR

12.5/23 (±2%) at 25⁰C

HVD

14.8/29.6(±2%) at 25⁰C

Temperature compensation

-3mV/Cell/⁰C

Dusk to dawn

On<3.5 Volt for 5 Min, /Off :> 4.5V Module Voltage (Available in Dusk to dawn controller only). If bat is connected into the without SPV module an error signal will be given by glowing SPV charging LED. The dusk to dawn controller is having features to prevent Battery from Deep discharge in case Module is stolen or wire is disconnected from controller. Thus during testing Modules must be connected into it.


Key Highlights

Brand Exide
Battery 12 Volts
Charge Controller Type PWM
Current 10 Amps
