Exide EP 7-12AH New Replacement Battery Compatibility: Exide EP 7-12
Suitable for
- iball nirantar ups-621v
- Frontech Electra 725 VA UPS
- replacement battery for apc back ups RS 600
- apc br550ci-in, apc back ups RS 600, replacement battery for apc back ups es 500, apc back ups rs600, APC BR600CI_IN , PS600va ups,
APC Back-UPS ES 500

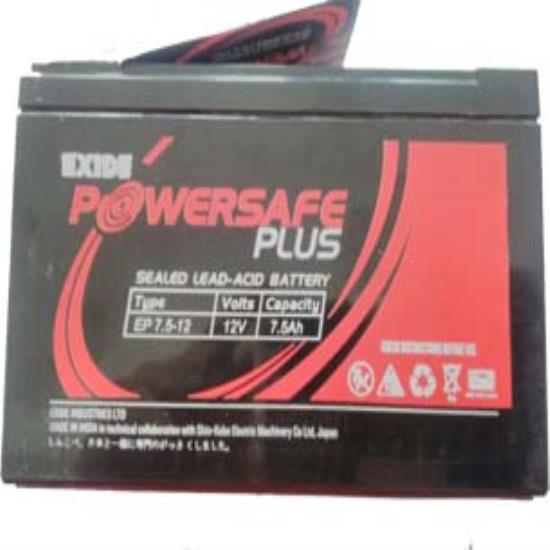

Exide Powersafe Plus 12V 7AH SMF UPS Battery EP-7
Warranty: 1 year full replacement warranty The Exide EP 7-12 replacement battery is a high quality battery designed to provide excellent performance, durability and long life. This battery meets or exceeds the original manufacturer's specifications.
Application :UPS, Power Packs, Laboratory Equipment, Spray machine etc. Manufacture Warranty applicable to UPS only. UPS BACKUPS, Petrol PUMPS, BURGLAR ALARMS, RIDE ON TOYS AND MANY MORE
SPECIFICATIONS of 12V 7AH
|
| Battery Model |
EP 7-12 |
| Battery Voltage (V) |
12 |
| Battery Type |
VRLA AGM |
| Capacity |
7 AH |
| RATED CAPACITY AT 27 C |
| 20 HR (C20) - 1.75 V Cell |
7 |
| 10 HR (C10) - 1.75 V Cell |
6.5 |
| 3 HR |
5.2 |
| 1.5 HR |
5.0 |
| 1 HR |
4.2 |
| 30 Min |
3.5 |
| DIMENSIONS (mm) |
| Overall Height |
100 |
| Height up to lid |
94 |
| Length |
151 |
| Width |
65 |
| Weight KGS |
2.2 |
12v 7ah Cycle Applications: Limit initial current to 2.1A. Charge until battery voltage
(under charge) reaches 14.4 to 14.7 volts at 68°F (20°C). Hold at 14.4 to 14.7
volts until current drops to under 70mA. Battery is fully charged under these
conditions, and charger should be disconnected or switched to “float” voltage.
12v 7ah “Float” or “Stand-By” Service: Hold battery across constant voltage source of
13.5 to 13.8 volts continuously. When held at this voltage, the battery will seek its
own current level and maintain itself in a fully charged condition.
Note: Due to the self-discharge characteristics of this type of battery, it is
imperative that they be charged within 6 months of storage, otherwise permanent
loss of capacity might occur as a result of sulfation.
http://powerwale.blogspot.in/2015/06/12v-7ah-battery-review-exide-battery.html
Applications:
- ATM
- EPBX
- Fire Alarm
- Medical Equipment
- Office Automation Equipment
- Process Instrumentation
- Railway Signaling;
- Solar Powered System
- Telecommunication System
- Cable Television Equipment
- Emergency Lighting
- geophysical Equipment
